Environoment
Cutting-Edge MEMS Tecnology for Continous Benzene, Ethylbenzene, Toluene and Xylenes (BTEX)
Monitoring in Real Time
PyxisGC BTEX is the first and unique stand-alone gaschromatograph for remote monitoring of BTEX in ambient air operating in "carrier gas free" mode.
PyxisGC BTEX faces all the requirements of EN14662-3:2015, defining the method for automatic sampling with aspiration, devoted to benzene measurements.
Applications:
“Smart city” air quality monitoring
Fence line monitoring
Environmental screening monitoring
Pixis: External view
Pyxis: Internal view

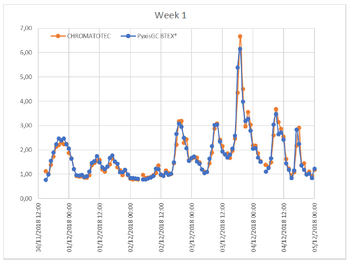

Pyxis BTEX has been successfully compared to a number of certified analyzers under different environmental conditions. The obtained results clearly confirmed its valuable performance and its ability to provide reliable and continuous BTEX real-time monitoring.

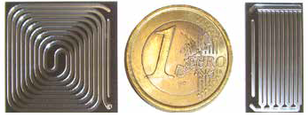

Pre-concentrator and GC separation column.

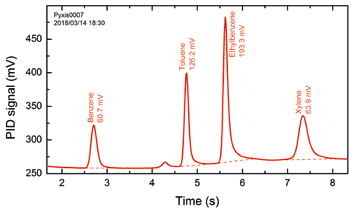

Advanced miniaturized PhotoIonization Detector (PID) allows to quantify with high accuracy the chromatographic picks of target compounds.
PyxisGC BTEX is equipped with a Cloud software to monitor and manage the acquired data: it is easily accessed via browser on your phone, tablet or PC. The Pollution Guardian Cloud software stores up and archives analysis data automatically, it allows the real time data and the historical data viewing (with creation of charts, tables, graphs and other statistical analyses).
For more technical details contact us or download the brochure.
